Name: Relay Interfacing Module RP24D08-1CO-M/P
Brand: Boost Electronics
Availability: InStock

Chat with us

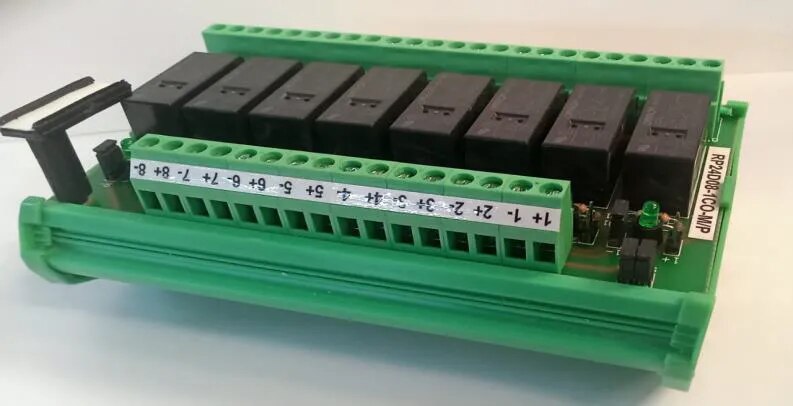

Relay Interfacing Module by Boost Electronics

Relay Interfacing Module RP24D08-1CO-M/P

Phone Number

08048036394

Please keep 0 before dialling the number.

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose

Specifications

No of Relay Channel	08 Channels
Rating of Contacts	10 A at 30V DC and 250V AC For resistive load.
Country of origin	Made in India
Coil Resistance	1,440 Ohms + 10%
Coil Voltage	24 V DC
Country of origin	Made in India
Contact Type	01 Change Over
Rating of Contacts	10 A at 30V DC and 250V AC For resistive load.
Country of origin	Made in India
Input Current/ Channel	17 mA per channel
Mechanical Dimensions	134 mm X 90 mm X 83 mm
Terminals	Screw type
Conductor size	0.25 -2.5 sq.mm flexible
Relay Make / Manufacturer	OMRON
Relay Type	G2RL-1, Electro-mechanical
Country of origin	Made in India
Rating of Contacts	10 A at 30V DC and 250V AC For resistive load.
Contact Type	01 Change Over
Country of origin	Made in India
