Relay Interfacing Module by Boost Electronics

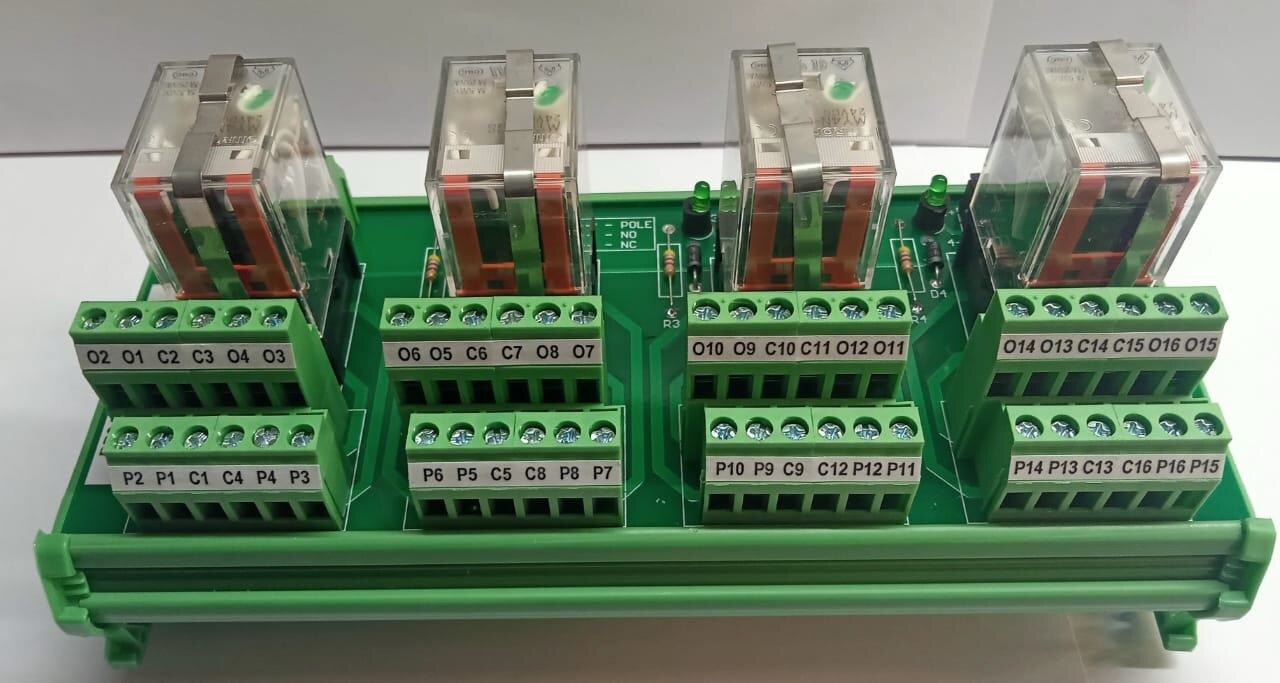

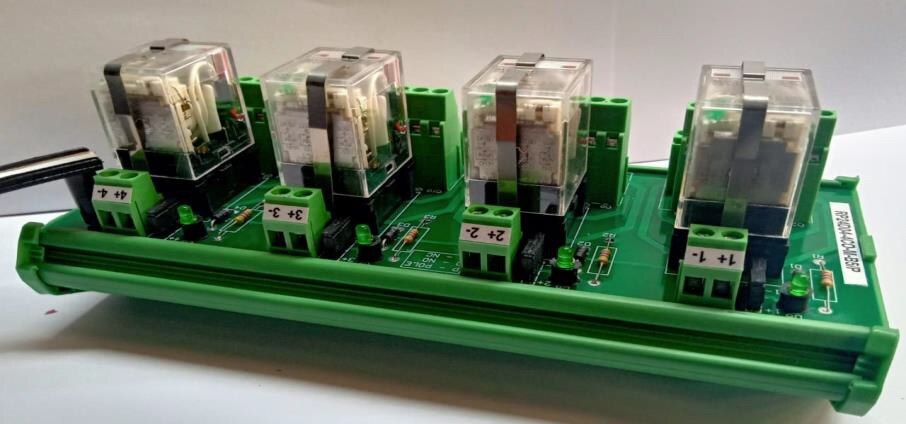

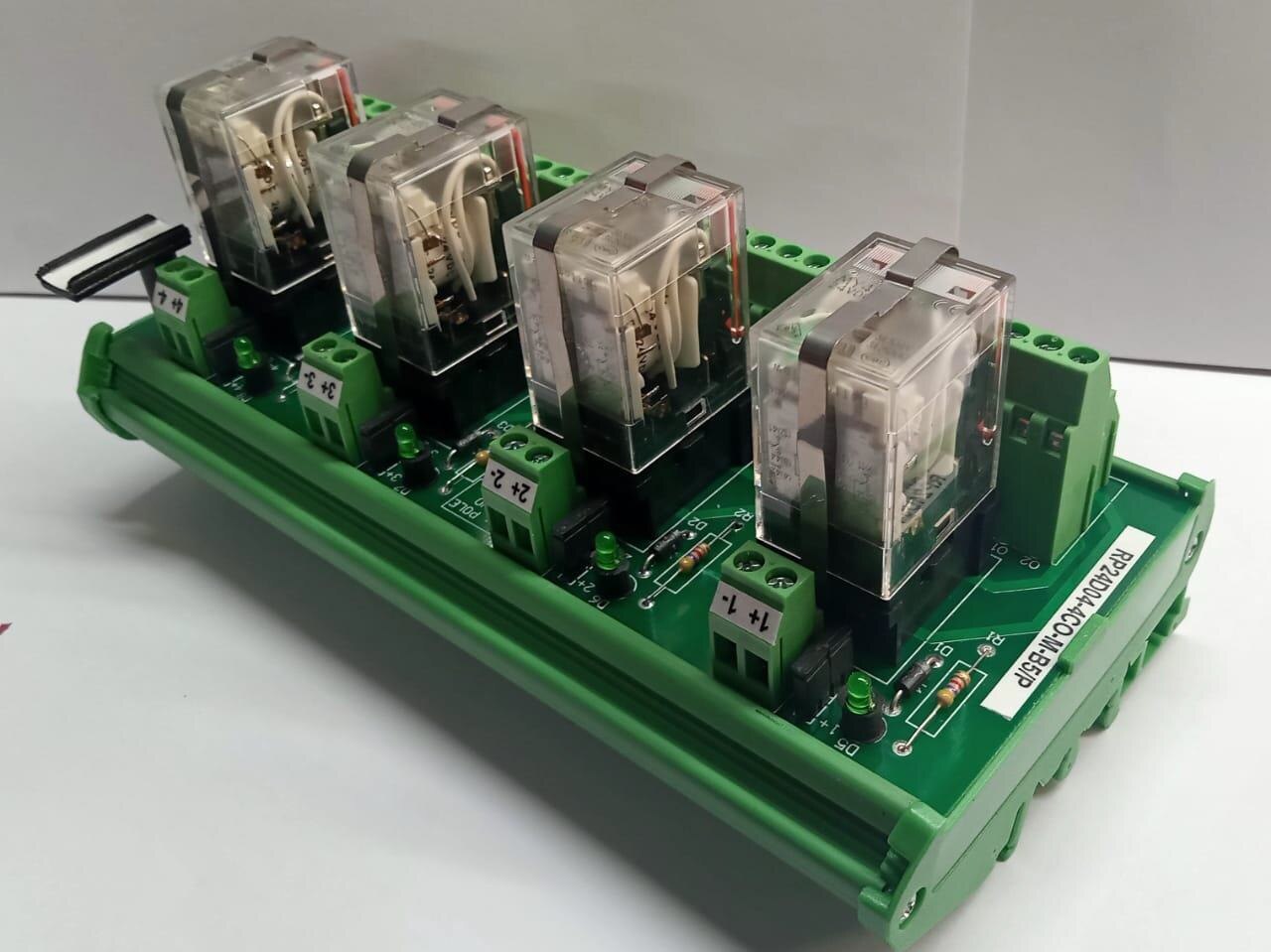

Relay Interfacing Module RP24D04-4CO-M-B14/P

Phone Number

08048036394

Please keep 0 before dialling the number.

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

Din Rail Mounting Pluggable Relay 100,000,000 Mechanical operations minimum. 500,000 Electrical operations minimum. Operating Temperature: 0 to 50 degree Celsius Storage Temperature: -10 to 60 degree Celsius Relative Humidity: 5 to 85% RH Relay ON Indication: Green Color LED Relay Protection Method: Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose

Specifications

No of Relay Channel	04
Coil Resistance	636 Ohms + 10%.
Coil Voltage	24 V DC
Relay Socket	5 A, 250 V AC
Input Current/ Channel	37 mA per channel
Mechanical Dimensions	184 mm X 90 mm X 80 mm
Terminals	Screw type
Conductor size	0.25 -2.5 sq.mm flexible
Relay Make	OMRON
Relay Type	MY4, Electro-mechanical
Contact Type	4 Change Over
