Name: Relay Interfacing Module RP24D04-2CO-M/P
Brand: Boost Electronics
Availability: InStock

Chat with us

Relay Interfacing Module by Boost Electronics

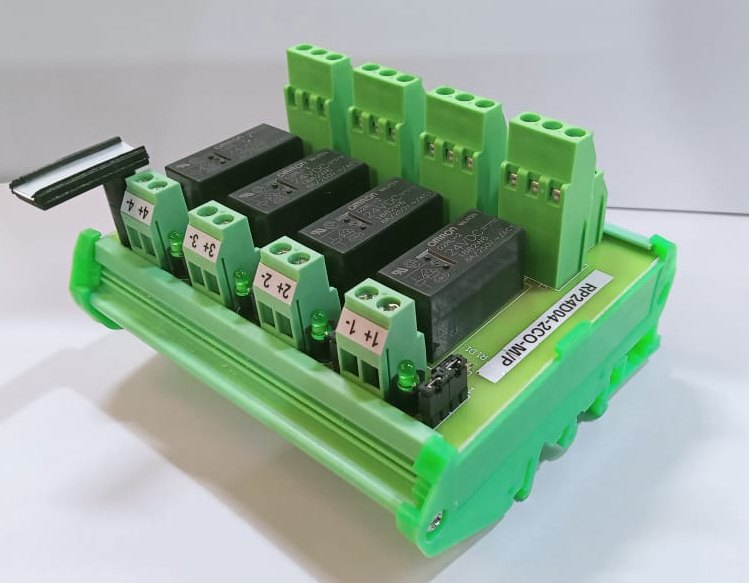

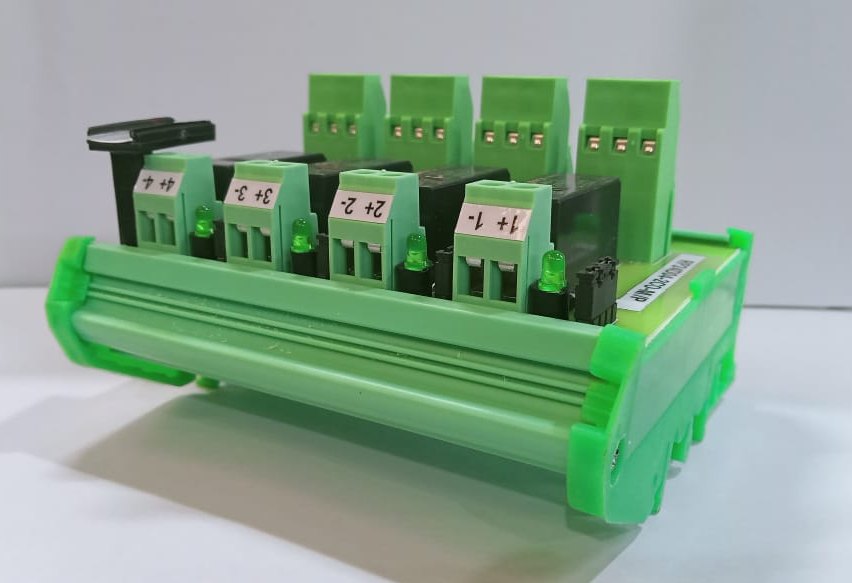

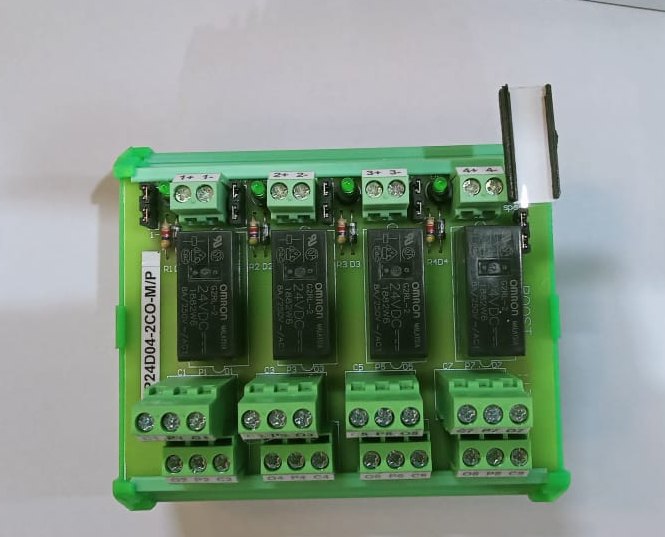

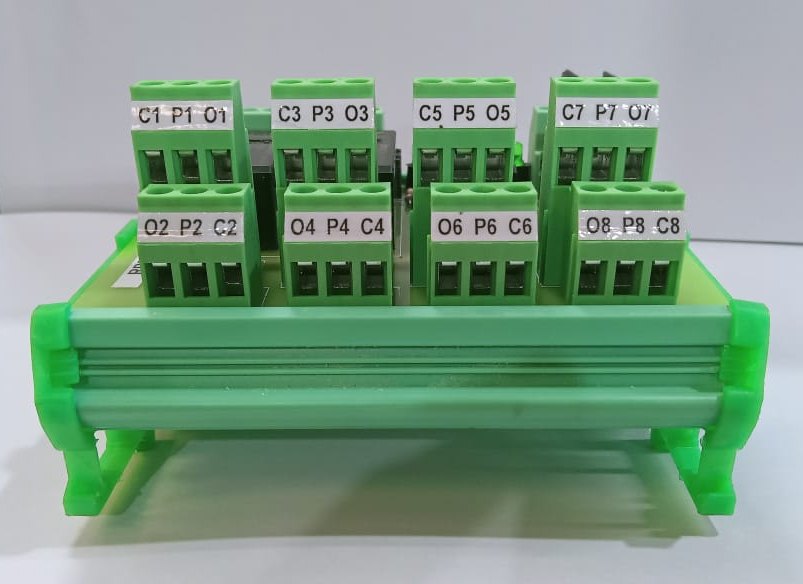

Relay Interfacing Module RP24D04-2CO-M/P

Phone Number

08048036394

Please keep 0 before dialling the number.

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 1,00,000 Electrical operations minimum.

Specifications

Coil Voltage	24 V DC
No of Relay Channel	04
Rating of Contacts	8 Amp at 30V DC & 250V AC For Resistive Load
Coil Resistance	1,440 ohms +/- 10 %.
Input Current/ Channel	16 mA per channel
Mechanical Dimensions	115 mm X 90 mm X 66 mm
Relay Type	G2RL-2, Electro-mechanical.
Relay Make / Manufacturer	OMRON
Contact Type	2 Change Over
Terminals	Screw Type
Conductor size	0.25 -2.5 sq.mm flexible
