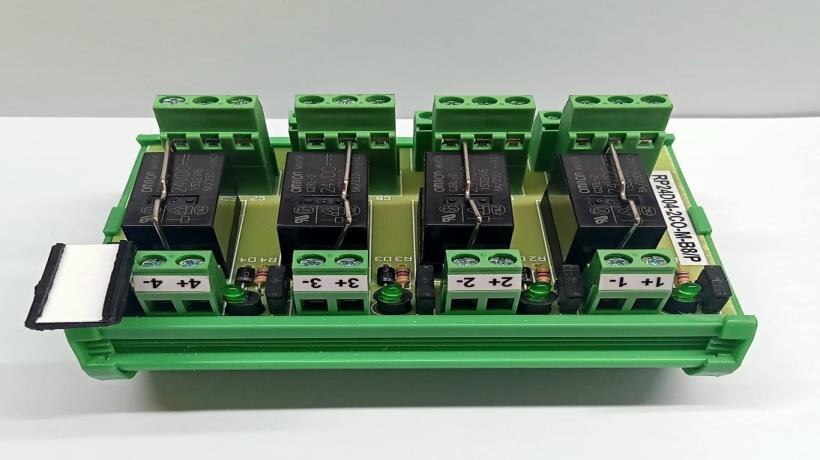

Relay Interfacing Module RP24D04-2CO-M-B8/P
In stock
Description
Din Rail Mounting
Pluggable Relay
20,000,000 Mechanical operations minimum.
30,000 Electrical operations minimum.
Operating Temperature: 0 to 50 degree Celsius
Storage Temperature: -10 to 60 degree Celsius
Relative Humidity: 5 to 85% RH
Relay ON Indication: Green Color LED
Relay Protection Method: Freewheeling Diode
Designation: Designation plate screwed to the PCB for labeling purpose
Specifications
| Coil Voltage | 24 V DC |
|---|---|
| Relay Socket | 5 A, 250 V AC |
| Coil Resistance | 1,440 Ohms + 10%. |
| No of Relay Channel | 04 Channel |
| Input Current/ Channel | 17 mA per channel |
| Rating of Contacts | 8 A at 30V DC and 250V AC for resistive load. |
