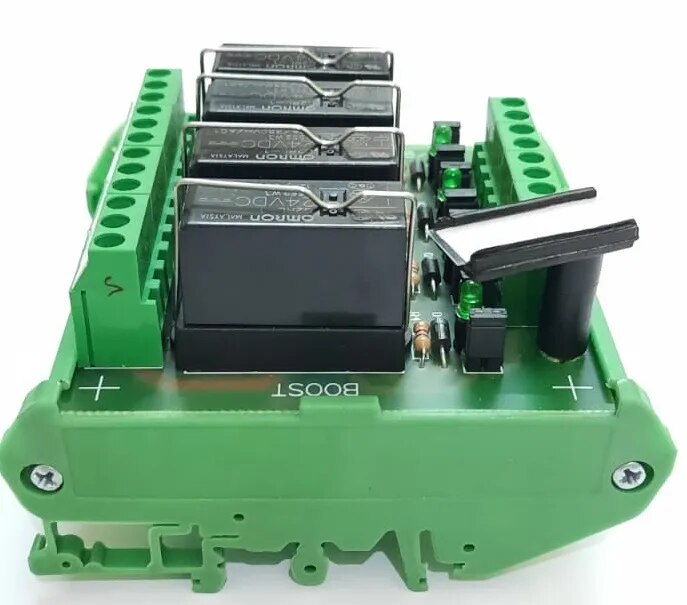

Relay Interfacing Module RP24D04-1CO- M-B5/P

Operating Temperature : 0 to 50 degree Celsius

Storage Temperature : 10 to 60 degree Celsius

Relative Humidity : 5 to 95% RH

Relay ON Indication : Green Color Led

Relay Protection Method : Freewheeling

DiodeDesignation : Designation plate screwed to the PCB for labeling purpose

Rating of Contacts : 10 Amp at 30 V DC & 250 V AC for Resistive load.

Relay Socket :Rating- 5 A, 250 V AC.

Terminals : Screw type.Contact Type : 1 Change Over.

Relay Make / Manufacturer : OMRON
