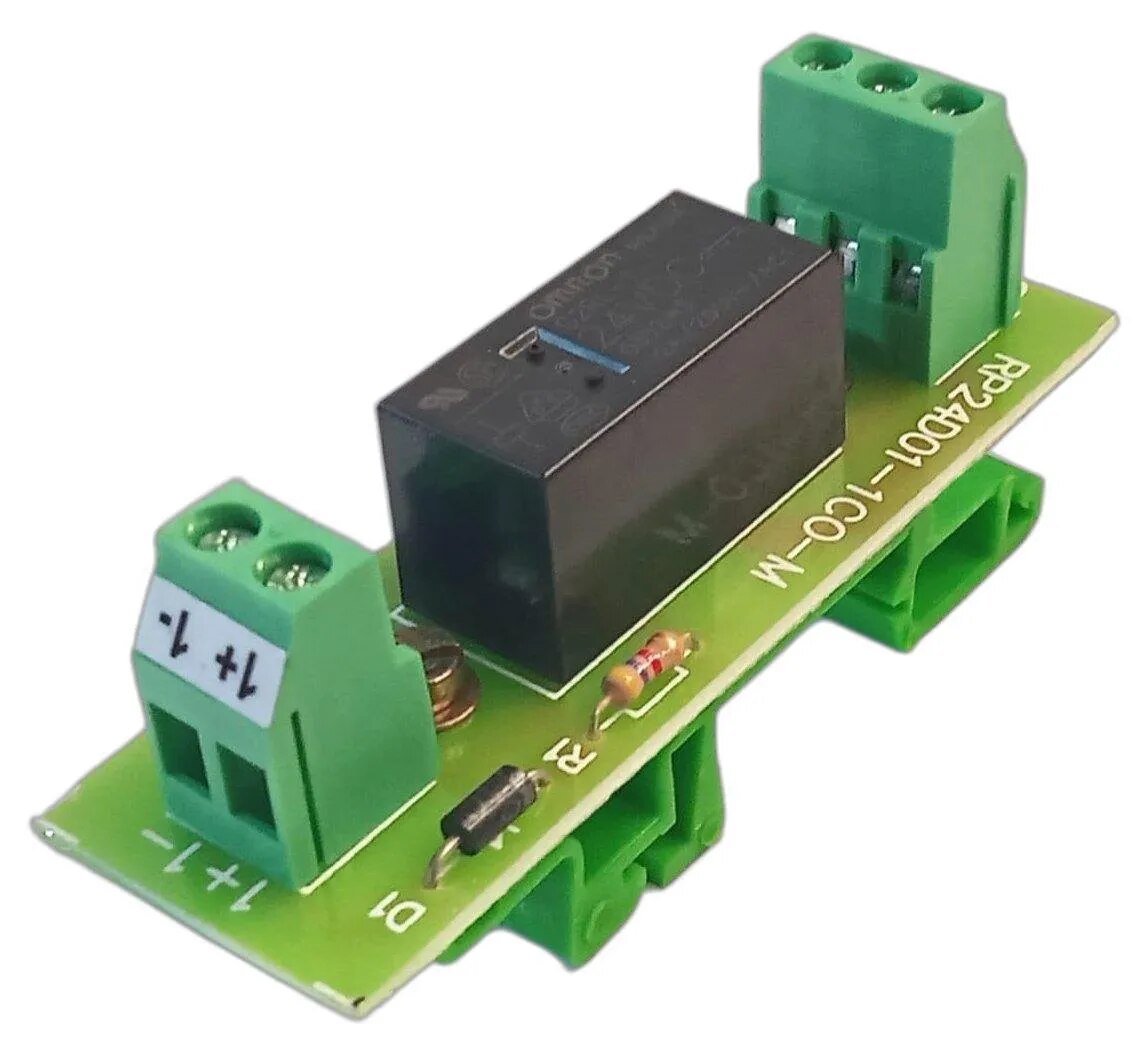

Relay Interfacing Module RP24D01-1CO- M

Operating Temperature: 0 to 50 degree Celsius

Storage Temperature: 10 to 60 degree Celsius

Relative Humidity : 5 to 95% RH

Relay ON Indication: Green Color Led

Relay Protection Method: Freewheeling Diode

Designation: Designation plate screwed to the PCB for labeling purpose

Rating of Contacts: 10 Amp at 30 V DC & 250 V AC for Resistive load.

Coil Resistance: 1440 Ohms +/- 10%.

Input Current/ Channel:12 mA @ 24 V DC.

Terminals: Screw type.

Conductor size : 0.25 -2.5 sq.mm flexible.

Relay Make / Manufacturer: OMRON.

Contact Type: 1 Change Over.
