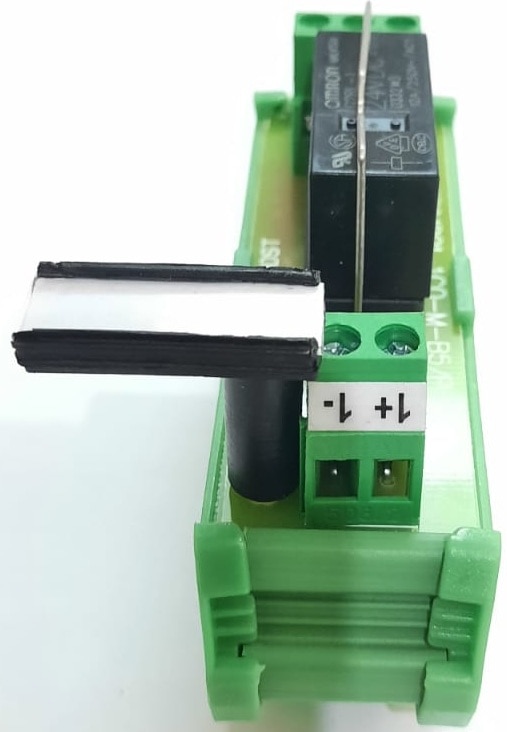

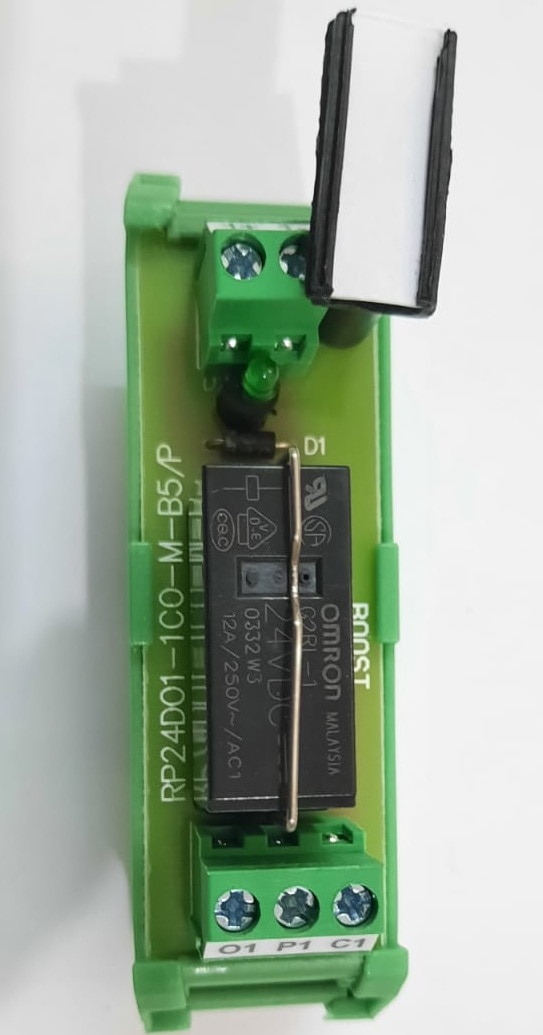

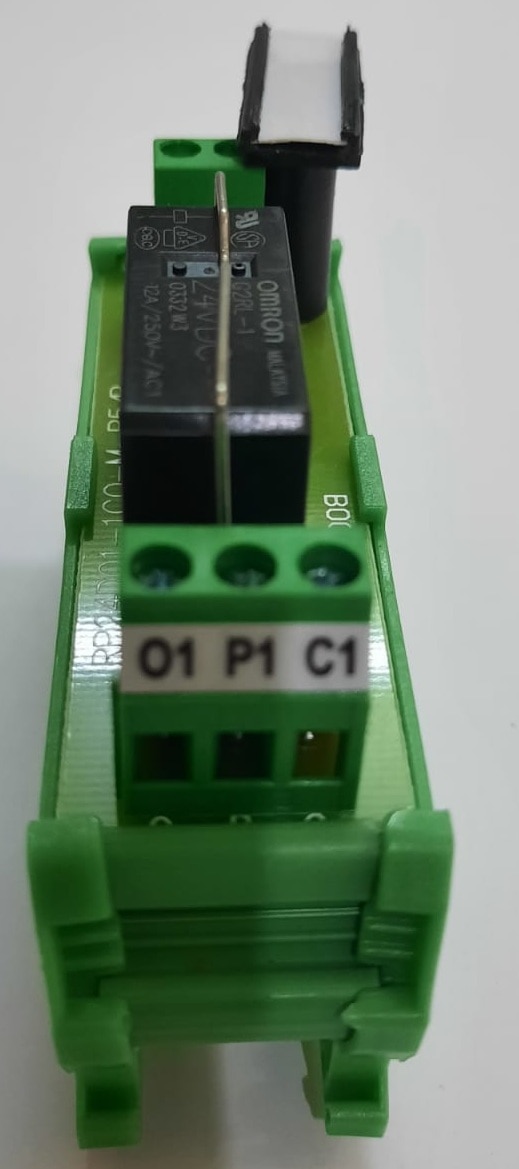

Relay Interfacing Module RP24D01-1CO- M-B5/P

Input Current/ Channel : 12 mA @ 24 V DC.

Terminals : Screw type.

Conductor size : 0.25 -2.5 sq.mm flexible.

Relay Make / Manufacturer : OMRON.

Operating Temperature : 0 to 50 degree Celsius

Storage Temperature : 10 to 60 degree Celsius

Relative Humidity : 5 to 95% RH

Relay ON Indication : Green Color Led

Relay Protection Method : Freewheeling Diode

Designation : Designation plate screwed to the PCB for labeling purpose
