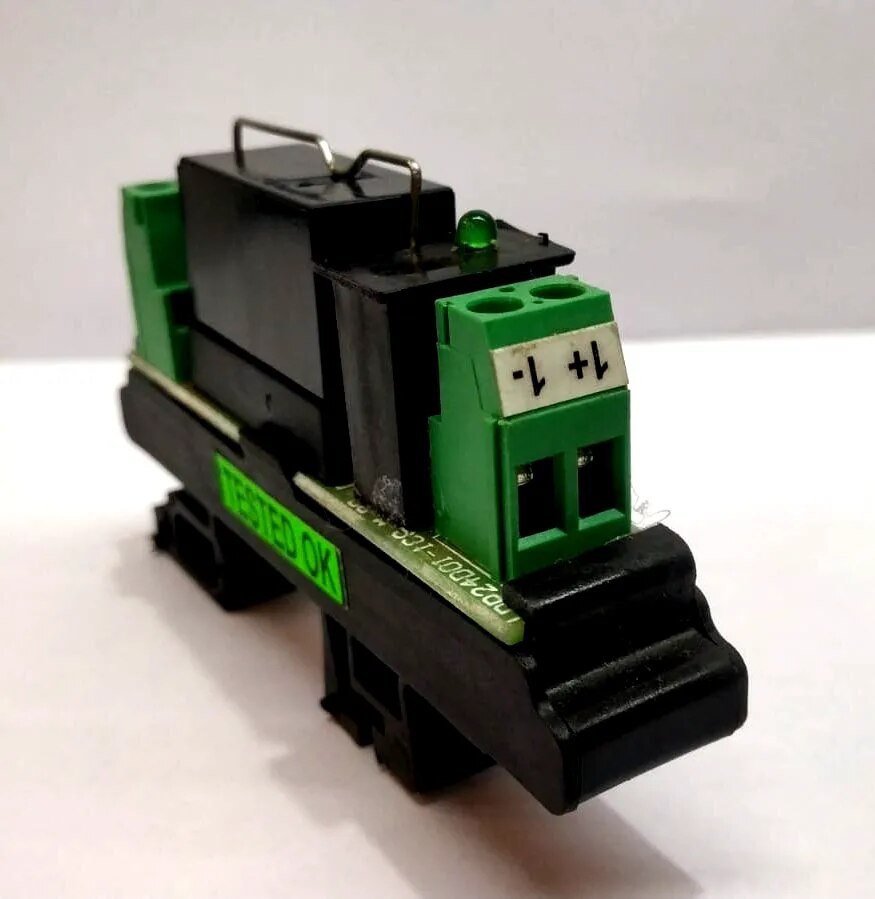

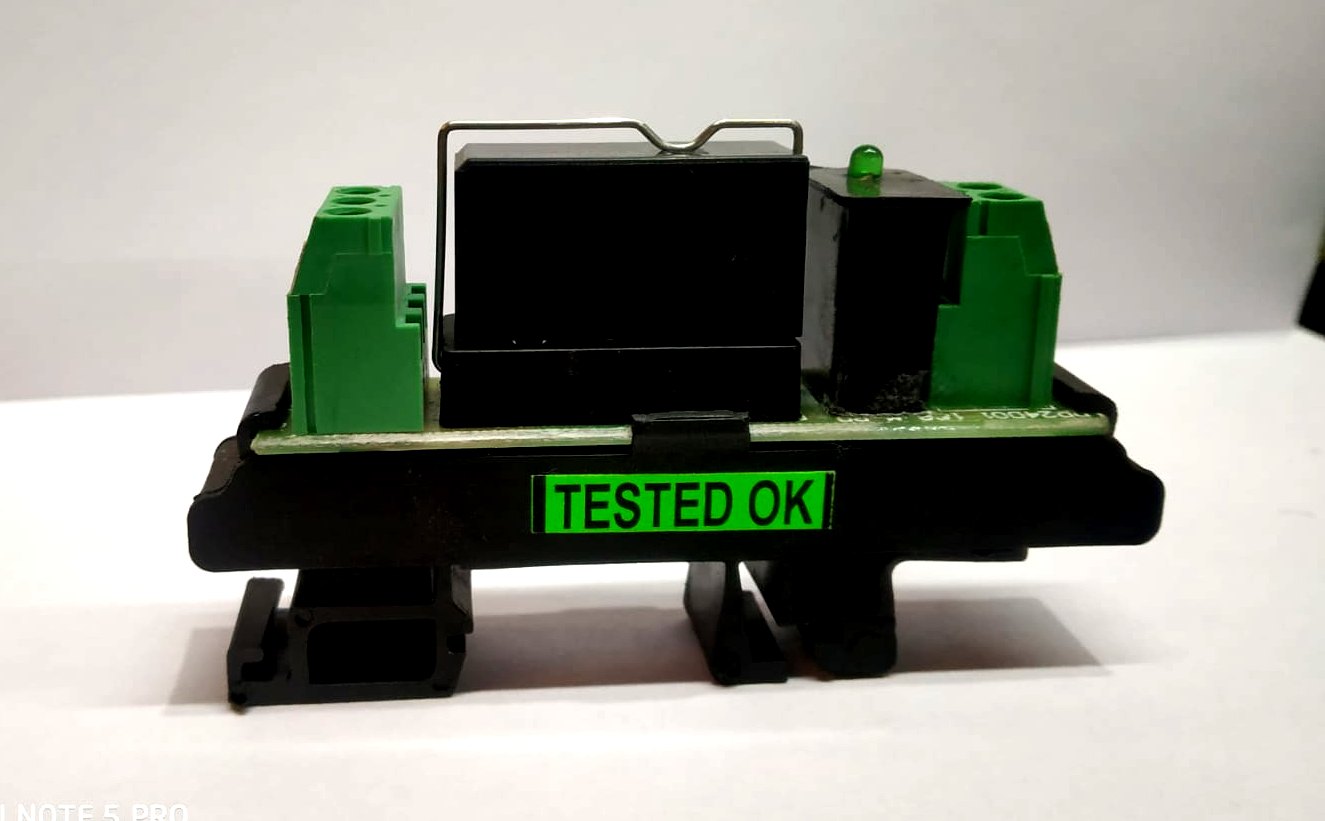

Relay Interfacing Module RP24D01-1CO-M-B5/P-C in Relay Interfacing Module by Boost Electronics, 1 Channel

Chat with us

Relay Interfacing Module by Boost Electronics

Relay Interfacing Module RP24D01-1CO-M-B5/P-C

Phone Number

08048036394

Please keep 0 before dialling the number.

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

Operating Temperature: 0 to 50 degree Celsius Storage Temperature: -10 to 60 degree Celsius Relative Humidity: 5 to 95% RH Relay ON Indication: Green Color LED Relay Protection Method: Freewheeling Diode Designation: Designation plate screwed to the PCB for labeling purpose

Specifications

No of Relay Channel	1 Channel
Rating of Contacts	10 A at 24 VDC and 250 VAC For resistive load.
Coil Resistance	1,440 Ohms + 10%
Coil Voltage	24 V DC
Relay Socket	5 A, 250 V AC
Mechanical Dimensions	16 mm X 85 mm X 50 mm
Contact Type	1 Change Over
Contact Type	1 Change Over
Terminals	Screw type
Conductor size	0.25 -2.5 sq.mm flexible
Relay Make / Manufacturer	OMRON
Relay Type	G2RL-1, Electro-mechanical
Contact Type	1 Change Over
Contact Type	1 Change Over
Contact Type	1 Change Over
