Name: Relay Interfacing Module RP230A08-1CO-M
Brand: Boost Electronics
Availability: InStock

Chat with us

Relay Interfacing Module by Boost Electronics

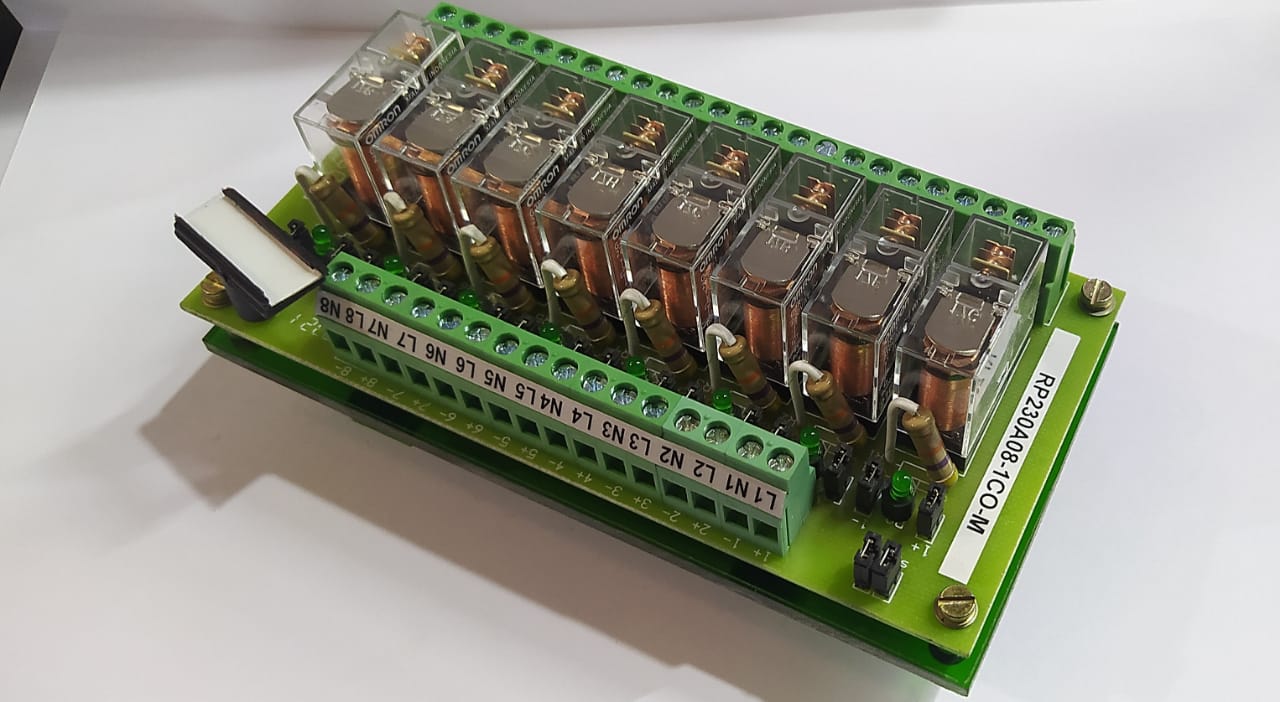

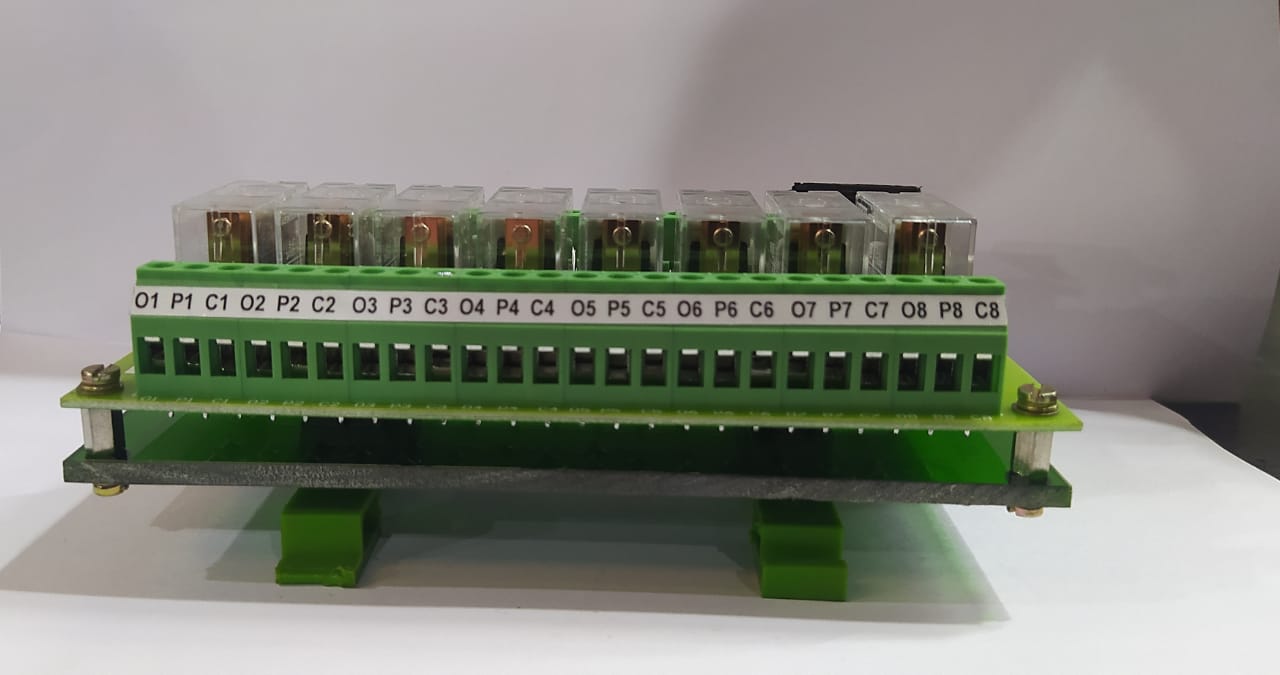

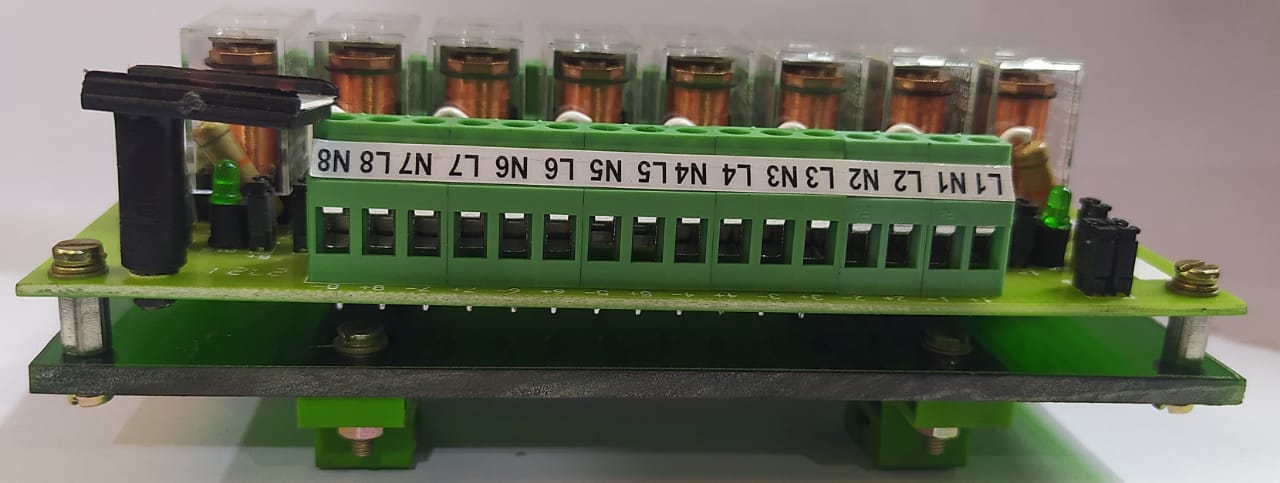

Relay Interfacing Module RP230A08-1CO-M

Phone Number

08048036394

Please keep 0 before dialling the number.

Email Address info@boostelectronics.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Office : Ground Floor, Vivek Bungalow, Kulkarni Colony, Nasik – 422 002 Maharashtra Factory : S-29, MIDC Ambad, Nasik – 422 010, Maharashtra, India

Nashik, India, 422002

Description

Ordering Type : RP230A08-1CO-M Din Rail Mounting Solderable Relay 10,000,000 Mechanical operations minimum. 50,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 95 % RH Relay ON Indication : Green color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose

Specifications

No of Relay Channel	08
Rating of Contacts	5 Amp at 30 V DC & 250 V AC for Resistive load
Contact Type	1 Change Over
Coil Resistance	26,850 Ohms +/-10%.
Coil Voltage	230 V AC.
Relay Socket	5 A, 250 V AC.
Input Current/ Channel	9 mA at 230 V AC
Mechanical Dimensions	148 mm X 72 mm X 60 mm
Terminals	Screw type
Conductor size	0.25 -2.5 sq.mm flexible.
Relay Make / Manufacturer	OMRON
Relay Type	Electro-mechanical, G2R-1
Contact Type	1 Change Over
