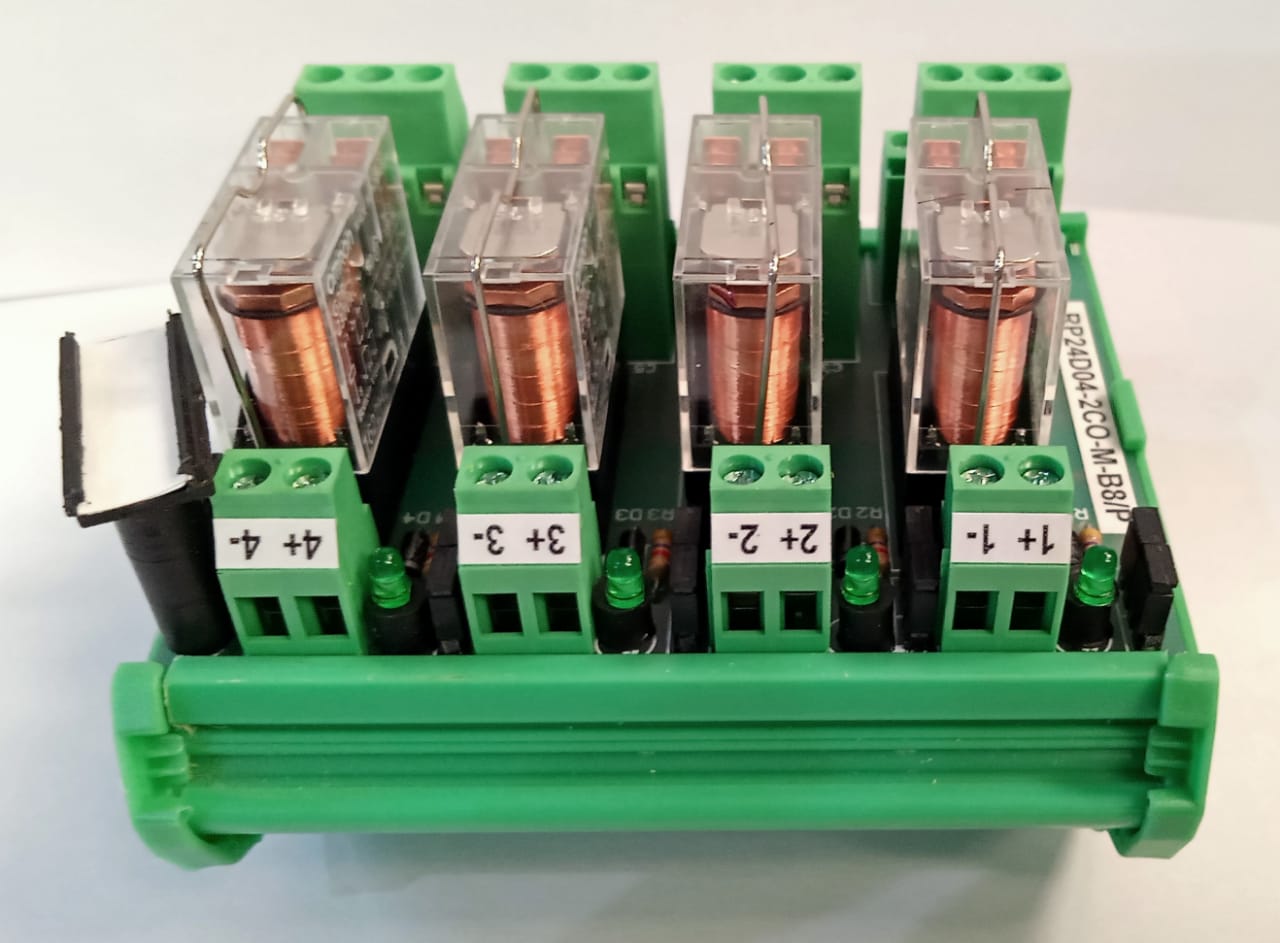

Relay Interfacing Module RP230A04-2CO-M-B8/P

Operating Temperature: 0 to 50 degree Celsius

Storage Temperature: -10 to 60 degree Celsius

Relative Humidity: 5 to 95% RH

Relay ON Indication: Green Color Led

Relay Protection Method: Freewheeling Diode

Dimensions

PCB Dimension: 90 mm x 72 mm.

Mechanical Dimensions: 92 mm X 90 mm X 68 mm

Operating Voltage: 230 V AC ±10%.

Input Current/ Channel : 12 mA at 230 Volt AC

Terminals: Screw type.

Conductor size: 0.25 -2.5 sq.mm flexible.

Relay Make / Manufacturer: OMRON.

Relay Type: Electro-mechanical, G2R-2

Contact Type: 2 Change Over.

Designation: Designation plate screwed to the PCB for labeling purpose.

No of Relay Channel: 4 Channels.

Rating of Contacts: 5 Amp at 30 V DC & 240 V AC for Resistive load.

Coil Resistance: 20,000 Ohms +/-10%.

Coil Voltage: 230 V AC.

Relay Socket: Rating- 5 A, 250 V AC.
