Type Of Interface: D type Female connector at one and terminal block at other side Usage/Application: In motor control machinery, electronics assembly , material handling, in automation industries Weight: Light in weight Brand: Boost Color: Green Condition: New Construction: PCB assembly suitable for DIN Rail mounting comprising of: 1. Interface To Field Side Mechanical Dimension: 75 mm X 32 mm X 30 mm Operating Voltage: 125 VAC Switching Continuous Current: 3.5 Ampere Wire Striping Length: 6 mm Recommended Wire Size: 30-14 AWG Screw Tightening Torque: Maximum 0.4 Nm Country of Origin: Made in India Minimum Order Quantity: 50 Piece

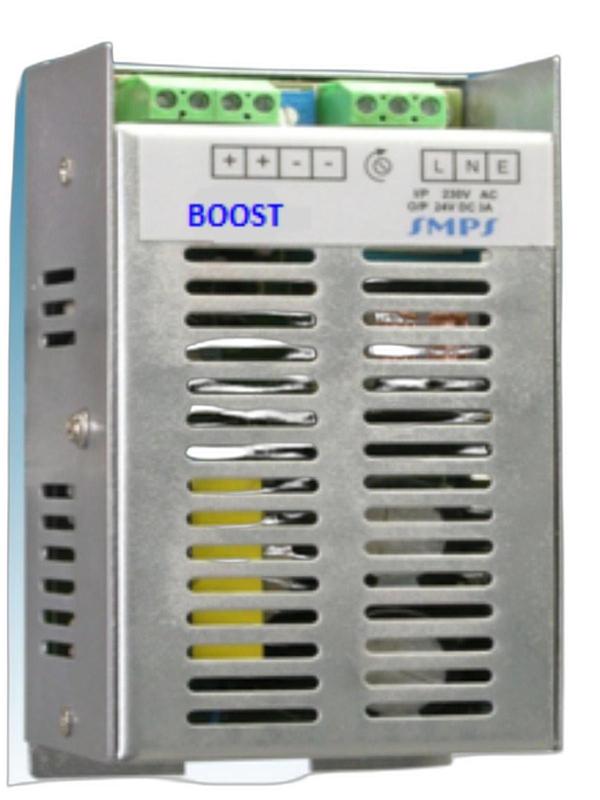

Usage/Application Industrial Automation Brand - BOOST Output Voltage - 24 Volt Input Voltage - 170-270VAC Design - SMPS Input Current - 0.7 A (230 VAC) Rated Power - 120W Order Number - BE-SMPS-24/5 Country of Origin - Made in India

Din Rail Mounting Pluggable Relay 10,000,000 mechanical operations minimum. 50,000 electrical operations minimum. Usage/Application - For Control Panel Use Brand - Boost Number Of Poles - 2 Pole Coil Voltage - 230 V AC Channels - 08 Size - 182 mm X 90 mm X 68 mm Shape - Rectangular Country of Origin - Made in India Minimum Order Quantity - 1 Number

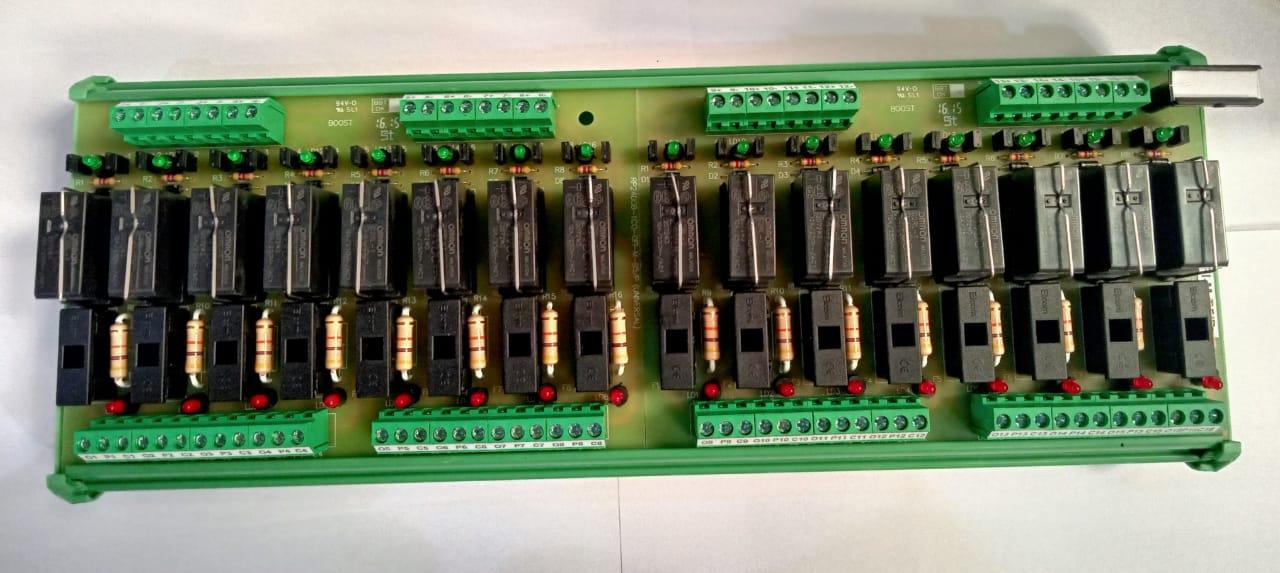

OperatingTemperature : 0 to 50 degree Celsius StorageTemperature: -10 to 60 degree Celsius Relative Humidity: 5 to 95% RH Relay ON Indication: Green Color Led Relay Protection Method: Freewheeling Diode Fuse Link: A glass fuse link provided at pole of each Relay Fuse Blow Indication: Red LED indicates Fuse Blown condition Fuse Rating: 5Amp. Designation: Designation plate screwed to the PCB for Labeling purpose. Brand - BOOST Channels - 16 Usage/Application - Industrial Material PCB - FR4, Glass Epoxy Coil Voltage - 24 Volt DC Relay Type - Electro-mechanical, G2RL-1 Relay Current - 17 mA at 24 Volt DC Size - 334 mm X 128 mm X 60 mm Model Name/Number - RP24D16-1CO-OFI-M-B5-P Shape - Rectangular Country of Origin - Made in India Minimum Order Quantity - 1 Number

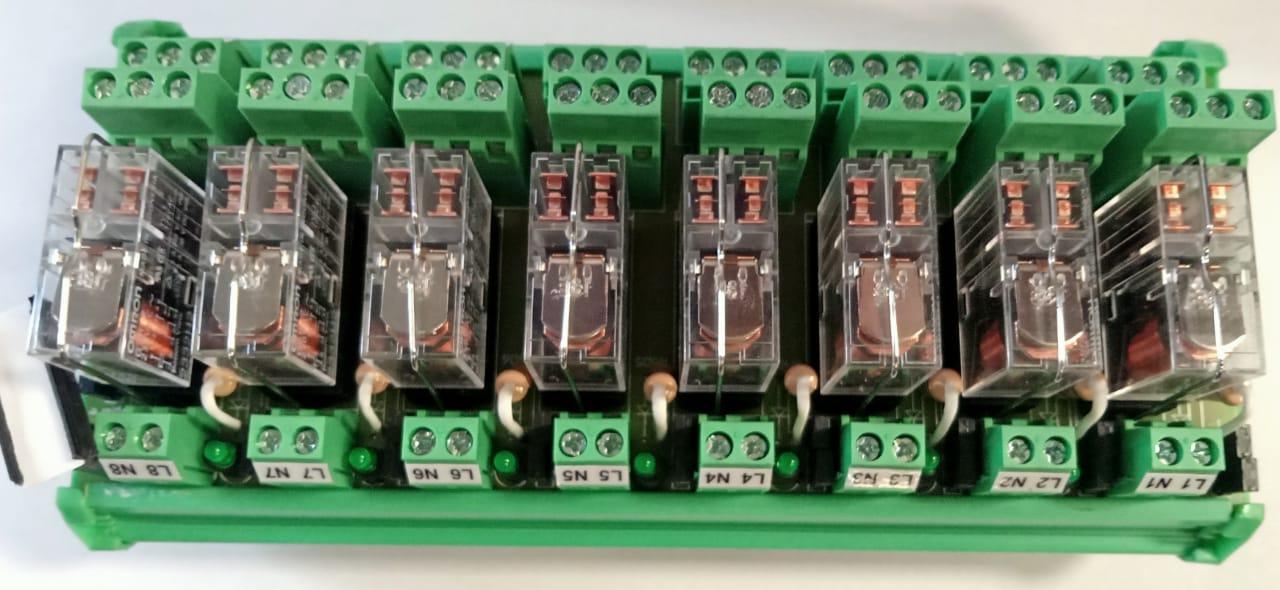

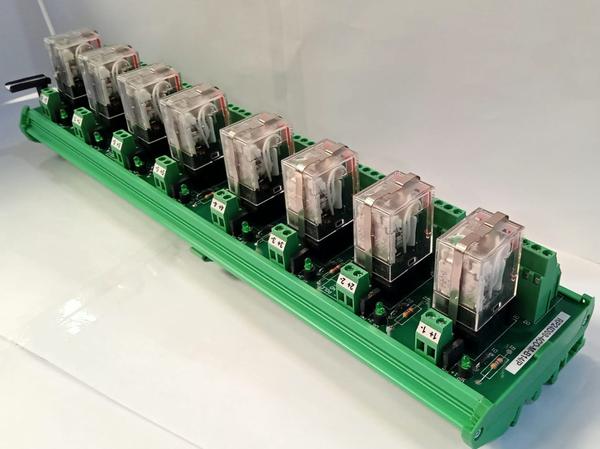

Din Rail Mounting Pluggable Relay 100,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Channels : 08 Brand : BOOST Material PCB : FR4, Glass Epoxy Usage/Application : Industrial Relay Type : MY4, Electro-mechanical. Coil Voltage : 24 V DC Ambient Operating Temperature : 0 to 50 degree Celsius. Relay Current : 36 mA @ 24 V DC / Channel Size : 360 mm X 90 mm X 83 mm Model Name/Number : RP24D08-4CO-M-B14/P Frequency : 50 Hz Input Current : 36 mA @ 24 V DC per channel Shape : Rectangular Number Of Channel : 08 Packaging Type : corrugated box Relay : MY4, Electro-mechanical, OMRON Switching Frequency : 50 Hz Temperature : 0 to 50 degree Celsius Country of Origin : Made in India Minimum Order Quantity : 1 Number

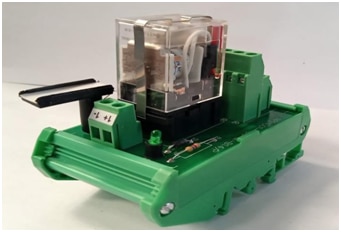

Din Rail Mounting Solderable Relay 100,000,000 Mechanical operations minimum. 200,000 Electrical operations minimum. Usage/Application - For Control Panel Use Brand - Boost Number Of Poles - 4 Pole Coil Voltage - 24 V DC Channels - 01 Relay Type - MY4, Electro-mechanical, OMRON Size - 54 mm X 90 mm X 80 mm Shape - Rectagular Item No - RP24D01-4CO-M-B14/P Country of Origin - Made in India Minimum Order Quantity - 1 Number

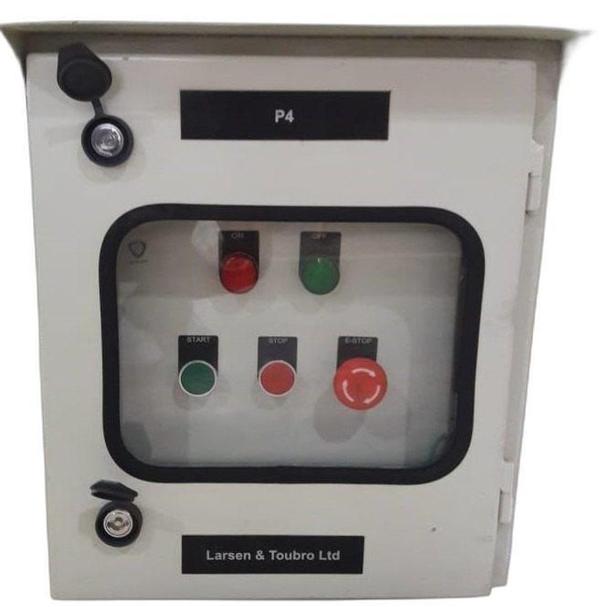

Shape : Rectangular No. of Ways : 12 Way Material : As per requirement IP Rating : IP55 Brand : Boost Size/Dimensions : As per requirement Color : As per requirement Is It Water Proof: Yes Usage/Application : Industrial Country of Origin : Made in India Minimum Order Quantity : 1 Number

Two Input One Output Diode Module Din Rail Mounting, Redundant Module “OR”ing Module No of Channel: 1 Channel ( 2 input , 1 output diode module ) Diode Type: Stud mounting (cathode to stud). No. of Diode: Two Input current per Channel: 40 Amp PIV: 1600 VoltTerminal Markings : Output ends are brought to the top row of PCB Mounted terminals marked as K. : Input ends are brought to the top row of PCB Mounted terminals marked as A1, A2. Mounting Type : Panel Mount Brand : Boost Usage/Application : Industrial Part Number : DM-R-40A-16 No. of Diode : 2 PIV : 1600 PIV Input current per Channel : 40Amp Diode Type : Stud mounting (cathode to stud). No of Channel : 1 Country of Origin : Made in India Minimum Order Quantity : 1 Number

No of Channel: 1 Channel (2 input, 1 output diode module) Diode Type: Stud Mounting. No. of Diode: Two Input current per Channel: 5 Amp PIV: 1600 Volt Terminal Connection: Screw terminal, 0.25²mm to 2.5²mm conductor Terminal Markings: Output ends are brought to the top row of PCB Mounted terminals marked as K. : Input ends are brought to the top row of PCB Mounted terminals marked as A1, A2. Brand - Boost Usage/Application - Industrial Part Number- DM-R-5A-16 Size - 70 mm X 90 mm X 115 mm PCB Material - FR4, Glass Epoxy Country of Origin - Made in India Minimum Order Quantity - 1
