OperatingTemperature : 0 to 50 degree Celsius StorageTemperature: -10 to 60 degree Celsius Relative Humidity: 5 to 95% RH Relay ON Indication: Green Color Led Relay Protection Method: Freewheeling Diode Fuse Link: A glass fuse link provided at pole of each Relay Fuse Blow Indication: Red LED indicates Fuse Blown condition Fuse Rating: 5Amp. Designation: Designation plate screwed to the PCB for Labeling purpose. Brand - BOOST Channels - 16 Usage/Application - Industrial Material PCB - FR4, Glass Epoxy Coil Voltage - 24 Volt DC Relay Type - Electro-mechanical, G2RL-1 Relay Current - 17 mA at 24 Volt DC Size - 334 mm X 128 mm X 60 mm Model Name/Number - RP24D16-1CO-OFI-M-B5-P Shape - Rectangular Country of Origin - Made in India Minimum Order Quantity - 1 Number

Product Name: Relay Module Product No: RP230A08-1CO-M-B5-P No of Relay Channel : 08 Channel. Rating of Contacts : 5 Amp at 30 V DC & 250 V AC for Resistive load. Coil Resistance : 20.20 K Ohms +/-10%.Coil Voltage : 230 V AC. Relay Socket : 5 A, 250 V AC. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : 10 to 60 degree Celsius Relative Humidity : 5 to 95% RH Relay ON Indication : Green Color LedRelay Protection Method : Freewheeling DiodeDesignation : Designation plate screwed to the PCB for labelingpurpose

Product Name:- Relay Module Type No:- RP24D08-1CO-M-B5-P No. of Relay:- 08 Coil Voltage:- 24 Volt DC Contact Configuration:- 01 C/O Relay module with socket.

Product Name:- Relay Module Type No:- RP110A01-1CO-M-B5-P No. of Relay:- 01 Coil Voltage:- 110 Volt AC Contact Configuration:- 01 C/O Relay module with socket.

Product Type:- FIM CUM RELAY MODULE Part No.:- BE24I-16CO-OF-M-B5-P Contact Configuration:- 16 C/O

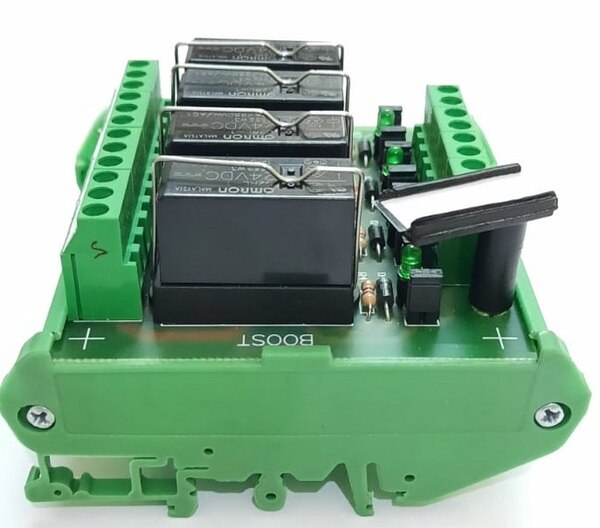

Product Name:- Relay Module Type No:- RP24D04-1CO-M-B5-P No. of Relay:- 04 Coil Voltage:- 24 Volt DC Contact Configuration:- 01 C/O Relay module with socket.

Din Rail Mounting Pluggable Relay 20,000,000 Mechanical operations minimum. 30,000 Electrical operations minimum.

Din Rail Mounting Pluggable Relay Operating Temperature: 0 to 50 degree Celsius Storage Temperature: -10 to 60 degree Celsius Relative Humidity: 5 to 85% RH Relay ON Indication: Green Color LED Relay Protection Method: Inbuilt Designation: Designation plate screwed to the PCB for labeling purpose Fuse Link: A glass fuse link provided at pole of each Relay Fuse Blow Indication: Each Fuse in path of pole is provided with red LED indicates Fuse Blown Indication.

Din Rail Mounting Pluggable Relay Operating Temperature: 0 to 50 degree Celsius Storage Temperature: -10 to 60 degree Celsius Relative Humidity: 5 to 85% RH Relay ON Indication: Green Color LED Relay Protection Method: Inbuilt Designation: Designation plate screwed to the PCB for labeling purpose Fuse Link: A glass fuse link provided at pole of each Relay Fuse Blow Indication: Each Fuse in path of pole is provided with red LED indicates Fuse Blown Indication.
