Din Rail Mounting Pluggable Relay Operating Temperature: 0 to 50 degree Celsius Storage Temperature: -10 to 60 degree Celsius Relative Humidity: 5 to 85% RH Relay ON Indication: Green Color LED Relay Protection Method: Inbuilt Designation: Designation plate screwed to the PCB for labeling purpose Fuse Link: A glass fuse link provided at pole of each Relay Fuse Blow Indication: Each Fuse in path of pole is provided with red LED indicates Fuse Blown Indication.

Din Rail Mounting Pluggable Relay Operating Temperature: 0 to 50 degree Celsius Storage Temperature: -10 to 60 degree Celsius Relative Humidity: 5 to 85% RH Relay ON Indication: Green Color LED Relay Protection Method: Inbuilt Designation: Designation plate screwed to the PCB for labeling purpose Fuse Link: A glass fuse link provided at pole of each Relay Fuse Blow Indication: Each Fuse in path of pole is provided with red LED indicates Fuse Blown Indication.

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4600 Ohms +/- 10%. Coil Voltage : 110V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 24 mA per channel PCB Dimension : 120mm X 72 mm. Mechanical Dimensions : 125 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical

Din Rail Mounting Pluggable Relay 10,000,000 Mechanical operations minimum. 100,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 20.2KOhms +/- 10%. Coil Voltage : 230V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 11mA per channel PCB Dimension : 120mm X 72 mm. Mechanical Dimensions : 125 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 NO

16 Channel relay Module, Coil : 110 V AC, 1 NO Din Rail Mounting Pluggable Relay 18,000 Mechanical operations minimum. 1,800 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 4600 Ohms +/- 10%. Coil Voltage : 110 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 24 mA per channel PCB Dimension : 330 mm X 108 mm. Mechanical Dimensions : 334 mm X 128 mm X 60 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 NO Packaging Details - In corrugated box with bubble sheet.

16 Channel relay Module, Coil : 230V AC, 1 NO Din Rail Mounting Pluggable Relay 18,000 Mechanical operations minimum. 1,800 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : NA Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 26,850 Ohms +/- 10%. Coil Voltage : 230 V AC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 9 mA per channel PCB Dimension : 330 mm X 108 mm. Mechanical Dimensions : 334 mm X 128 mm X 60 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2R-1, Electro-mechanical Contact Type: 1 NO Packaging Details - In corrugated box with bubble sheet.

16 Channel relay Module, Coil : 24 V DC, 1 NO Contact Din Rail Mounting Pluggable Relay 1,00,000 Mechanical operations minimum. 50,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 16 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 1,440 Ohms +/- 10%. Coil Voltage : 24 V DC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 17 mA per channel PCB Dimension : 330 mm X 108 mm. Mechanical Dimensions : 334 mm X 128 mm X 60 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2RL-1, Electro-mechanical Contact Type: 1 NO Packaging Details - In corrugated box with bubble sheet.

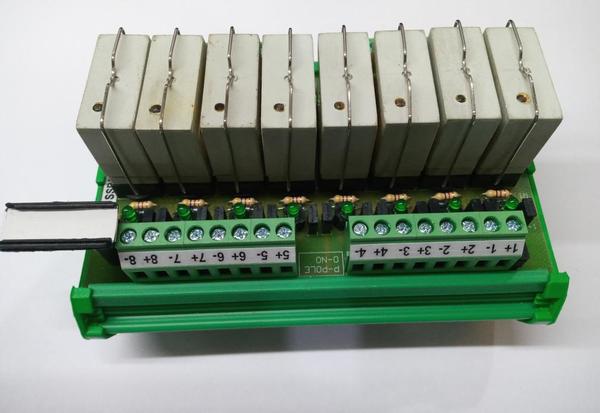

8 Channel SSR Module, Coil : 24 V DC, 1 C/O Contact Din Rail Mounting Solderable Relay Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Inbuilt Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel PCB Dimension : 131 mm X 72 mm. Mechanical Dimensions : 133 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: UNISON Relay Type: 806, PMDD Packaging Details - In corrugated box with bubble sheet.

Din Rail Mounting Solderable Relay 20,000,000 Mechanical operations minimum. 50,000 Electrical operations minimum. Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Freewheeling Diode Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load. Coil Resistance : 63 Ohms +/- 10%. Coil Voltage : 5 V DC Relay Socket : 5 A, 250 V AC Input Current/ Channel : 80 mA per channel PCB Dimension : 131 mm X 72 mm. Mechanical Dimensions : 133 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: OMRON Relay Type: G2RL-1, Electro-mechanical Contact Type: 1 Change Over Packaging Details - In corrugated box with bubble sheet.
