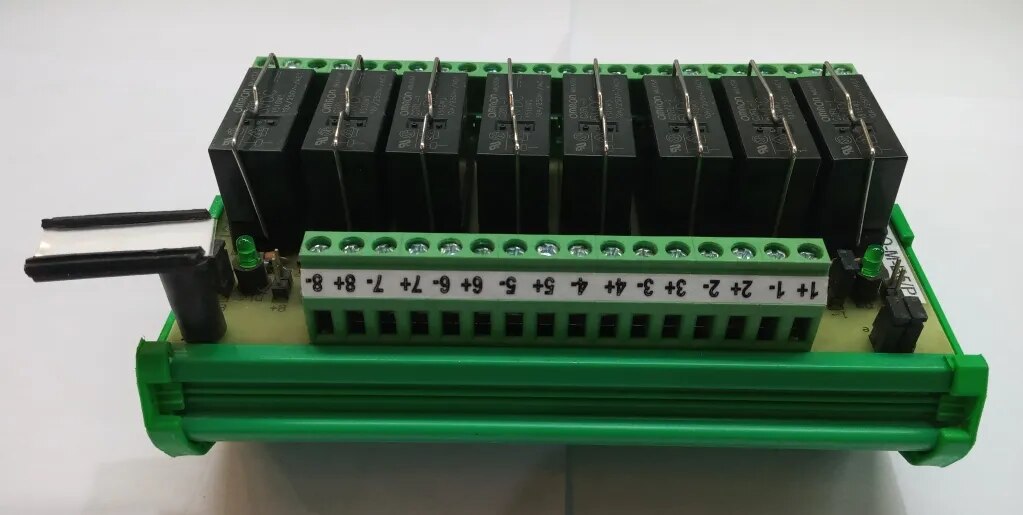

Relay Interfacing Module RP05D08-1CO-M-B5/P

Din Rail Mounting

Solderable Relay

20,000,000 Mechanical operations minimum.

50,000 Electrical operations minimum.

Operating Temperature : 0 to 50 degree Celsius

Storage Temperature : -10 to 60 degree Celsius

Relative Humidity : 5 to 85% RH

Relay ON Indication : Green Color LED

Relay Protection Method : Freewheeling Diode

Designation : Designation plate screwed to the PCB for labeling purpose

No of Relay Channel : 8 Channel

Rating of Contacts : 10 A at 30V DC and 250V AC for resistive load.

Coil Resistance : 63 Ohms +/- 10%.

Coil Voltage : 5 V DC

Relay Socket : 5 A, 250 V AC

Input Current/ Channel : 80 mA per channel

PCB Dimension : 131 mm X 72 mm.

Mechanical Dimensions : 133 mm X 90 mm X 66 mm

Terminals : Screw type

Conductor size : 0.25 -2.5 sq.mm flexible

Relay Make / Manufacturer: OMRON

Relay Type: G2RL-1, Electro-mechanical

Contact Type: 1 Change Over

Packaging Details - In corrugated box with bubble sheet.
