ssr module

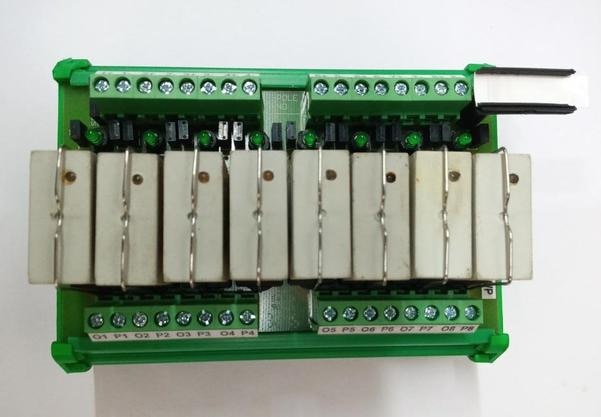

8 Channel SSR Module, Coil : 24 V DC, 1 C/O Contact Din Rail Mounting Solderable Relay Operating Temperature : 0 to 50 degree Celsius Storage Temperature : -10 to 60 degree Celsius Relative Humidity : 5 to 85% RH Relay ON Indication : Green Color LED Relay Protection Method : Inbuilt Designation : Designation plate screwed to the PCB for labeling purpose No of Relay Channel : 8 Channel PCB Dimension : 131 mm X 72 mm. Mechanical Dimensions : 133 mm X 90 mm X 66 mm Terminals : Screw type Conductor size : 0.25 -2.5 sq.mm flexible Relay Make / Manufacturer: UNISON Relay Type: 806, PMDD Packaging Details - In corrugated box with bubble sheet.

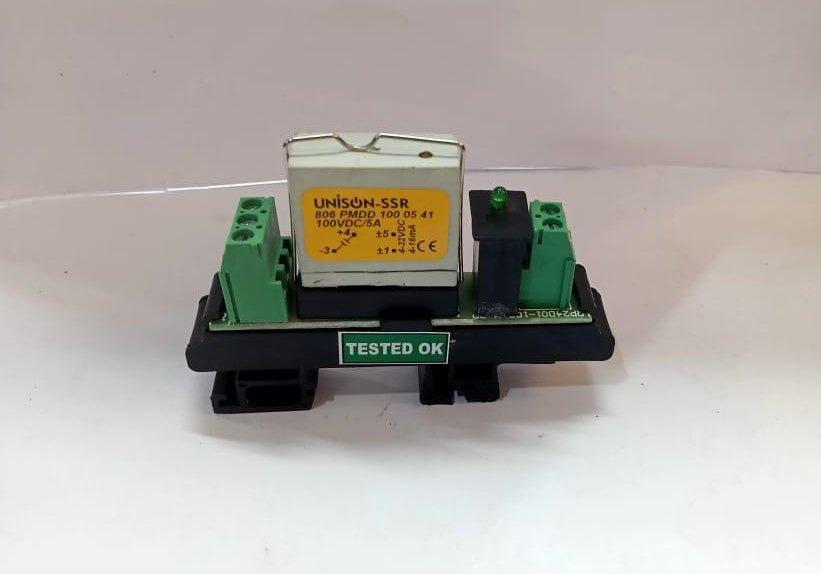

Din Rail Mounting Pluggable SS Relay 10,000,000 Operations Minimum Operating Temperature: 0 to 50 degree Celsius Storage Temperature: -10 to 60 degree Celsius Relative Humidity: 5 to 85% RH Relay ON Indication: Green Color LED Relay Protection Method: Inbuilt Designation: Designation plate screwed to the PCB for labeling purpose

Din Rail Mounting Pluggable SS Relay 10,000,000 Operations Minimum.
