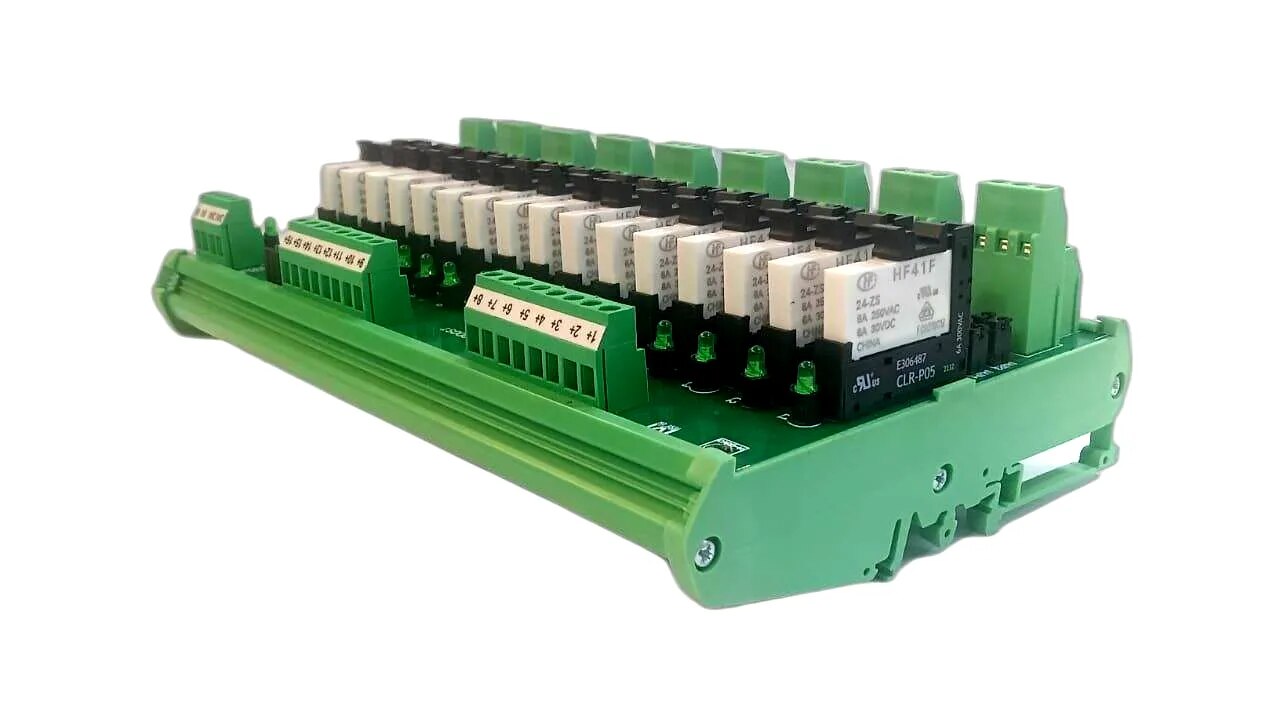

16 channels DO Field Interface Module
In stock
Description
Operating Temperature: 0 to 60 degree Celsius
Storage Temperature: -10 to 60 degree Celsius
Relative Humidity : 5 to 90% RH
Relay ON Indication: Green Color LED
Relay Protection Method: Freewheeling Diode
Designation: Designation plate screwed to the PCB for Labeling purpose.
Din Rail Mounting
Pluggable Relay
10,000,000 Mechanical operations minimum
60,000 Electrical operations minimum.
Specifications
| Type No. | RP24D16DO-1CO-B5/P-SLM |
|---|---|
| Rating of Contacts | 6 A at 230 Volt AC |
| Relay Socket | 6 A, 250 Volt AC |
| Coil Resistance | 3,390 Ohms +/-10% |
| No of Relay Channel | 16 |
| Input Current/ Channel | 7 mA |
| Coil Voltage | 24 V DC |
